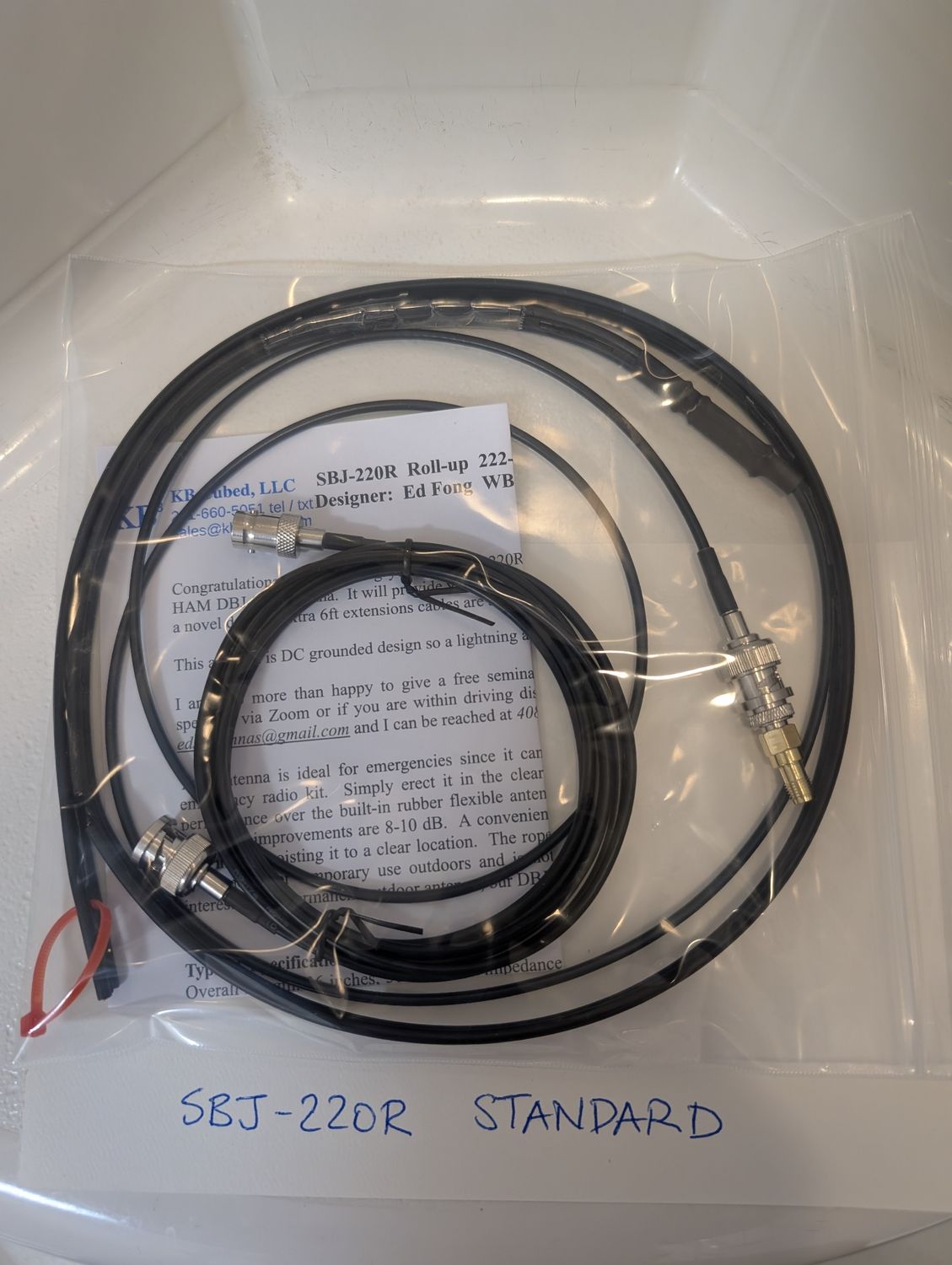

The SBJ-220R roll up antenna is a portable-friendly version of the HAM DBJ-220 antenna. It will provide years of service when properly installed. It is, as far as I know, a novel design. Extra 6ft extensions cables are available at $8 each.

This antenna is DC grounded design so a lightning arrestor is neither needed nor recommended.

I am also more than happy to give a free seminar to your ham group if you are looking for guest speakers via Zoom or if you are within driving distance come to your meeting. My email address is edsantennas@gmail.com my phone number is 408-245-8210.

This antenna is ideal for emergencies since it can be stored in a backpack, glove compartment or emergency radio kit. Simply erect it in the clear to give best performance. It will offer superior performance over the built-in rubber flexible antenna which comes with most handi-talkies. Typical measured improvements are 8-10 dB. A convenient nylon fastener has been attached to the end of the antenna for hoisting it to a clear location. The rope or twine used cannot be conductive. This antenna is intended for temporary use outdoors and is not designed for permanent outdoor use. If you are interested in a permanent outdoor antenna, our DBJ-220 is a better choice.

Typical Specifications:

Overall Length: 36 inches, 50 ohm feed impedance, no ground radials. Interface is BNC-M connector with adapters to fit SMA-M and SMA-F. Includes 6’ BNC-F to BNC-M extension cable.

VHF (222-225 MHz)

Configuration: 1/2 wave radiating element

Maximum power: 50 watts

SWR: less than 1.3 to 1 over 3 MHz bandwidth

Matching system: 1/4 wave matching stub

Gain: 2.1 dBi

Impedance: 50 ohms

Installation:

IMPORTANT: Since the antenna has no ground radials, its wind load is far less than that of a groundplane antenna. Always follow safety precautions as suggested in the ARRL handbook. NEVER mount close to high voltage wires and take undue risk when mounting the antenna. We assume no liability.
